Billing Service

Overview
The main objective of the billing module is to generate the bill for all revenue-based business services. To serve the bill, the Billing-Service requires demand. Demands will be prepared by the revenue modules and stored by billing based on which it generates the Bill.
Pre-requisites
Prior Knowledge of Java/J2EE.
Prior Knowledge of Spring Boot.
Prior Knowledge of KAFKA
Prior Knowledge of REST APIs and related concepts like path parameters, headers, JSON, etc.
Prior knowledge of demand-based systems.
The following services should be up and running:
user
MDMS
Id-Gen
URL-Shortening
notification-sms
Key Functionalities
eGov billing service creates and maintains demands.
Generates bills based on demands.
Updates the demands from payment when the collection service takes a payment.
Deployment Details
Deploy the latest image of the billing service available.
Configuration Details
In the MDMS data configuration, the following master data is needed for the functionality of the billing.
MDMS
Business Service JSON
{
  "tenantId": "pb",
  "moduleName": "BillingService",
  "BusinessService": [
    {
      "businessService": "PropertyTax",
      "code": "PT",
      "isBillAmendmentEnabled":"true",
      "collectionModesNotAllowed": [
        "DD","OFFLINE_NEFT","OFFLINE_RTGS","POSTAL_ORDER"
      ],
      "partPaymentAllowed": true,
      "minAmountPayable":100,
      "isAdvanceAllowed": false,
      "demandUpdateTime": 86400000,
      "isVoucherCreationEnabled": true,
      "billGineiURL" : "egov-searcher/bill-genie/billswithaddranduser/_get"
    },
    {
      "businessService": "WaterCharges",
      "code": "WC",
      "isBillAmendmentEnabled":"true",
      "collectionModesNotAllowed": [
        "DD","OFFLINE_NEFT","OFFLINE_RTGS","POSTAL_ORDER"
      ],
      "partPaymentAllowed": false,
      "isAdvanceAllowed": true,
      "demandUpdateTime": 86400000,
      "isVoucherCreationEnabled": false
    },
    {
      "businessService": "TradeLicense",
      "code": "TL",
      "collectionModesNotAllowed": [
        "DD","OFFLINE_NEFT","OFFLINE_RTGS","POSTAL_ORDER"
      ],
      "partPaymentAllowed": false,
      "isAdvanceAllowed": false,
      "demandUpdateTime": 604800000,
      "isVoucherCreationEnabled": true
    }
  ]
}
TAX-Head JSON
{
  "tenantId": "pb",
  "moduleName": "BillingService",
  "TaxHeadMaster": [
    {
      "category": "ADVANCE_COLLECTION",
      "service": "PT",
      "name": "Pt advance carry forward",
      "code": "PT_ADVANCE_CARRYFORWARD",
      "isDebit": true,
      "isActualDemand": false,
      "order": "0",
      "isRequired": false
    },
    {
      "category": "TAX",
      "service": "PT",
      "name": "Pt owner exemption",
      "code": "PT_OWNER_EXEMPTION",
      "isDebit": true,
      "isActualDemand": true,
      "order": "5",
      "isRequired": false
    },
    {
      "category": "TAX",
      "service": "PT",
      "name": "Pt time rebate",
      "code": "PT_TIME_REBATE",
      "isDebit": true,
      "isActualDemand": true,
      "order": "2",
      "isRequired": false
    },
    {
      "category": "TAX",
      "service": "PT",
      "name": "Pt unit usage excemption",
      "code": "PT_UNIT_USAGE_EXEMPTION",
      "isDebit": true,
      "isActualDemand": true,
      "order": "6",
      "isRequired": false
    },
    {
      "category": "TAX",
      "service": "PT",
      "name": "Pt adhoc penalty",
      "code": "PT_ADHOC_PENALTY",
      "isDebit": false,
      "isActualDemand": false,
      "order": "1",
      "isRequired": false
    },
    {
      "category": "TAX",
      "service": "PT",
      "name": "propertytax",
      "code": "PT_TAX",
      "isDebit": false,
      "isActualDemand": true,
      "order": "0",
      "isRequired": false
    },
    {
      "category": "TAX",
      "service": "PT",
      "name": "Pt fire cess",
      "code": "PT_FIRE_CESS",
      "isDebit": false,
      "isActualDemand": true,
      "order": "7",
      "isRequired": false
    }
  ]
}
Tax-Period JSON
{
  "tenantId": "pb",
  "moduleName": "BillingService",
  "TaxPeriod": [
    {
      "fromDate": 1554076799000,
      "toDate": 1585679399000,
      "periodCycle": "ANNUAL",
      "service": "PT",
      "code": "PTAN2019",
      "financialYear": "2019-20"
    },
    {
      "fromDate": 1522540800000,
      "toDate": 1554076799000,
      "periodCycle": "ANNUAL",
      "service": "PT",
      "code": "PTAN2018",
      "financialYear": "2018-19"
    },
    {
      "fromDate": 1491004800000,
      "toDate": 1522540798000,
      "periodCycle": "ANNUAL",
      "service": "PT",
      "code": "PTAN2017",
      "financialYear": "2017-18"
    },
    {
      "fromDate": 1459468800000,
      "toDate": 1491004799000,
      "periodCycle": "ANNUAL",
      "service": "PT",
      "code": "PTAN2016",
      "financialYear": "2016-17"
    },
    {
      "fromDate": 1522540800000,
      "toDate": 1554076799000,
      "periodCycle": "ANNUAL",
      "service": "TL",
      "code": "TLAN2018",
      "financialYear": "2018-19"
    }
  ]
}
Variable
Path
Description
bs.businesscode.demand.updateurl
{
"PT":"http://pt-calculator-v2:8080/pt-calculator-v2/propertytax/_updatedemand",​
​"TL":""​
​}​
Each module’s application calculator should provide its own update URL. if not present then a new bill will be generated without making any changes to the demand.
bs.bill.billnumber.format
BILLNO-{module}-[SEQ_egbs_billnumber{tenantid}]
IdGen format for the bill number
bs.amendment.idbs.bill.billnumber.format
BILLNO-{module}-[SEQ_egbs_billnumber{tenantid}]
​
is.amendment.workflow.enabled
true/false
enable disable workflow of bill amendment
Integration Details
Integration Scope
Billing service can be integrated with any organization or system that wants a demand-based payment system.
Integration Benefits
Easy to create and simple process of generating bills from demands
The amalgamation of bills period-wise for a single entity like PT or Water connection.
Amendment of bills in case of legal requirements.
Steps to Integration
1.Customers can create a demand using the /demand/_create
2.Organizations or Systems can search the demand using /demand/_searchendpoint
3.Once the demand is raised the system can call /demand/_update endpoint to update the demand as per need.
4.Bills can be generated using, which is a self-managing API that generates a new bill only when the old one expires /bill/_fetchbill.
5.Bills can be searched using /bill/_search.
6.Amendment facility can be used in case of a legal issue to add values to existing demands using /amendment/_create and /amendment/_update can be used to cancel the created ones or update workflow if configured.

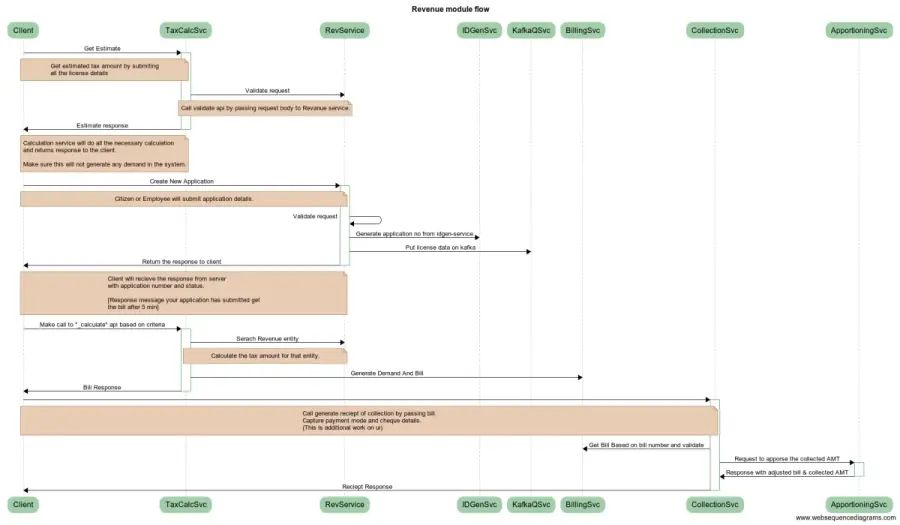

Interaction Diagram
Interaction Diagram V1.1:
Reference Docs
Doc Links
Description
Link
Id-Gen service
****
url-shortening
​
MDMS
​
API List
Description
Link
/demand/_create, _update, _search
​https://www.getpostman.com/collections/900d99a85d083fb2d377​
/bill/_fetchbill, _search
​https://www.getpostman.com/collections/900d99a85d083fb2d377​
/amendment/_create, _update
​https://www.getpostman.com/collections/b195d3b1d354c767b6bd​
Apportioning FAQs
What is apportioning?
Adjusting the receivable amount with the individual tax head.
Types of apportioning V1.1
Default order-based apportioning(Based on apportioning order adjust the received amount with each tax head).V1.1
Types of apportioning V1.2: (TBD)
Proportionate-based apportioning (Adjust total receivable with all the tax heads equally)
Order & percentage-based apportioning (Adjust total receivable based on order and the percentage which is defined for each tax head).
Principle of apportioning
The basic principle of apportioning holds that if the full amount is paid for any bill then each individual tax head should get nullified with their corresponding adjusted amount.
Example:
Case 1: When there are no arrears all tax heads belong to their current purpose.
Example: given below
Tax Head
Amount
Order
Full Payment (2000)
Partial Payment (1500)
Partial Payment (750)
Partial Payment With Rebate (500)
Pt_tax
1000
6
1000
1000
750
750
AdjustedAmt
​
​
1000
-250
-750
-750
RemainingAMTfromPayableAMT
​
​
0
0
0
0
Penality
500
5
500
500
​
​
AdjustedAmt
​
​
500
-500
​
​
RemainingAMTfromPayableAMT
​
​
1000
250
​
​
Interest
500
4
500
500
​
​
AdjustedAmt
​
​
500
-500
​
​
RemainingAMTfromPayableAMT
​
​
1500
750
​
​
Cess
500
3
500
500
​
​
AdjustedAmt
​
​
500
-500
​
​
RemainingAMTfromPayableAMT
​
​
2000
1250
​
​
Exm
-250
1
-250
-250
​
​
AdjustedAmt
​
​
-250
250
​
​
RemainingAMTfromPayableAMT
​
​
2250
1750
​
​
Rebate
-250
2
-250
​
​
-250
AdjustedAmt
​
​
-250
​
​
250
RemainingAMTfromPayableAMT
​
​
2500
​
​
750
Case 2: Apportioning with two years of arrear:
Example: The apportioning details for the financial year 2014-15 are given below.
Tax Head
Amount
Tax Period From
Tax Period To
Order
Purpose
Pt_tax
1000
2014
2015
6
Current
AdjustedAmt
0
​
​
​
​
Penality
500
2014
2015
5
Current
AdjustedAmt
0
​
​
​
​
Interest
500
2014
2015
4
Current
AdjustedAmt
0
​
​
​
​
Cess
500
2014
2015
3
Current
AdjustedAmt
0
​
​
​
​
Exm
-250
2014
2015
1
Current
AdjustedAmt
0
​
​
​
​
The table below illustrates the demand structure generated in case there are no payments for the specified financial year (2015-16).
Tax Head
Amount
Tax Period From
Tax Period To
Order
Purpose
Pt_tax
1000
2014
2015
6
Arrear
AdjustedAmt
0
​
​
​
​
Pt_tax
1500
2015
2016
6
Current
AdjustedAmt
0
​
​
​
​
Penalty
600
2014
2015
5
Arrear
AdjustedAmt
0
​
​
​
​
Penalty
500
2015
2016
5
Current
AdjustedAmt
0
​
​
​
​
Interest
500
2014
​
4
Arrear
AdjustedAmt
0
​
​
​
​
Cess
500
2014
​
3
Arrear
AdjustedAmt
0
​
​
​
​
Exm
-250
2014
​
1
Arrear
AdjustedAmt
0
​
​
​
​
​​
​All content on this page by eGov Foundation is licensed under a Creative Commons Attribution 4.0 International License.

Variable	Path	Description
bs.businesscode.demand.updateurl	{ "PT":"http://pt-calculator-v2:8080/pt-calculator-v2/propertytax/_updatedemand", "TL":"" }	Each module’s application calculator should provide its own update URL. if not present then a new bill will be generated without making any changes to the demand.
bs.bill.billnumber.format	BILLNO-{module}-[SEQ_egbs_billnumber{tenantid}]	IdGen format for the bill number
bs.amendment.idbs.bill.billnumber.format	BILLNO-{module}-[SEQ_egbs_billnumber{tenantid}]
is.amendment.workflow.enabled	true/false	enable disable workflow of bill amendment

Description	Link
Id-Gen service	****
url-shortening
MDMS

Description	Link
/demand/_create, _update, _search	https://www.getpostman.com/collections/900d99a85d083fb2d377
/bill/_fetchbill, _search	https://www.getpostman.com/collections/900d99a85d083fb2d377
/amendment/_create, _update	https://www.getpostman.com/collections/b195d3b1d354c767b6bd

Tax Head	Amount	Order	Full Payment (2000)	Partial Payment (1500)	Partial Payment (750)	Partial Payment With Rebate (500)
Pt_tax	1000	6	1000	1000	750	750
AdjustedAmt			1000	-250	-750	-750
RemainingAMTfromPayableAMT			0	0	0	0
Penality	500	5	500	500
AdjustedAmt			500	-500
RemainingAMTfromPayableAMT			1000	250
Interest	500	4	500	500
AdjustedAmt			500	-500
RemainingAMTfromPayableAMT			1500	750
Cess	500	3	500	500
AdjustedAmt			500	-500
RemainingAMTfromPayableAMT			2000	1250
Exm	-250	1	-250	-250
AdjustedAmt			-250	250
RemainingAMTfromPayableAMT			2250	1750
Rebate	-250	2	-250			-250
AdjustedAmt			-250			250
RemainingAMTfromPayableAMT			2500			750

Tax Head	Amount	Tax Period From	Tax Period To	Order	Purpose
Pt_tax	1000	2014	2015	6	Current
AdjustedAmt	0
Penality	500	2014	2015	5	Current
AdjustedAmt	0
Interest	500	2014	2015	4	Current
AdjustedAmt	0
Cess	500	2014	2015	3	Current
AdjustedAmt	0
Exm	-250	2014	2015	1	Current
AdjustedAmt	0

Tax Head	Amount	Tax Period From	Tax Period To	Order	Purpose
Pt_tax	1000	2014	2015	6	Arrear
AdjustedAmt	0
Pt_tax	1500	2015	2016	6	Current
AdjustedAmt	0
Penalty	600	2014	2015	5	Arrear
AdjustedAmt	0
Penalty	500	2015	2016	5	Current
AdjustedAmt	0
Interest	500	2014		4	Arrear
AdjustedAmt	0
Cess	500	2014		3	Arrear
AdjustedAmt	0
Exm	-250	2014		1	Arrear
AdjustedAmt	0
